4D shuttle implementation in a warehousing unit

Optimizing high-density storage operations with 4D shuttle AMR automation fast, precise, fully automated rack operations.

July, 2025
4D shuttle implementation in a warehousing unit

Introduction

In a high-volume manufacturing facility, efficient storage and retrieval of finished goods within multi-level racking systems was a critical operational requirement.

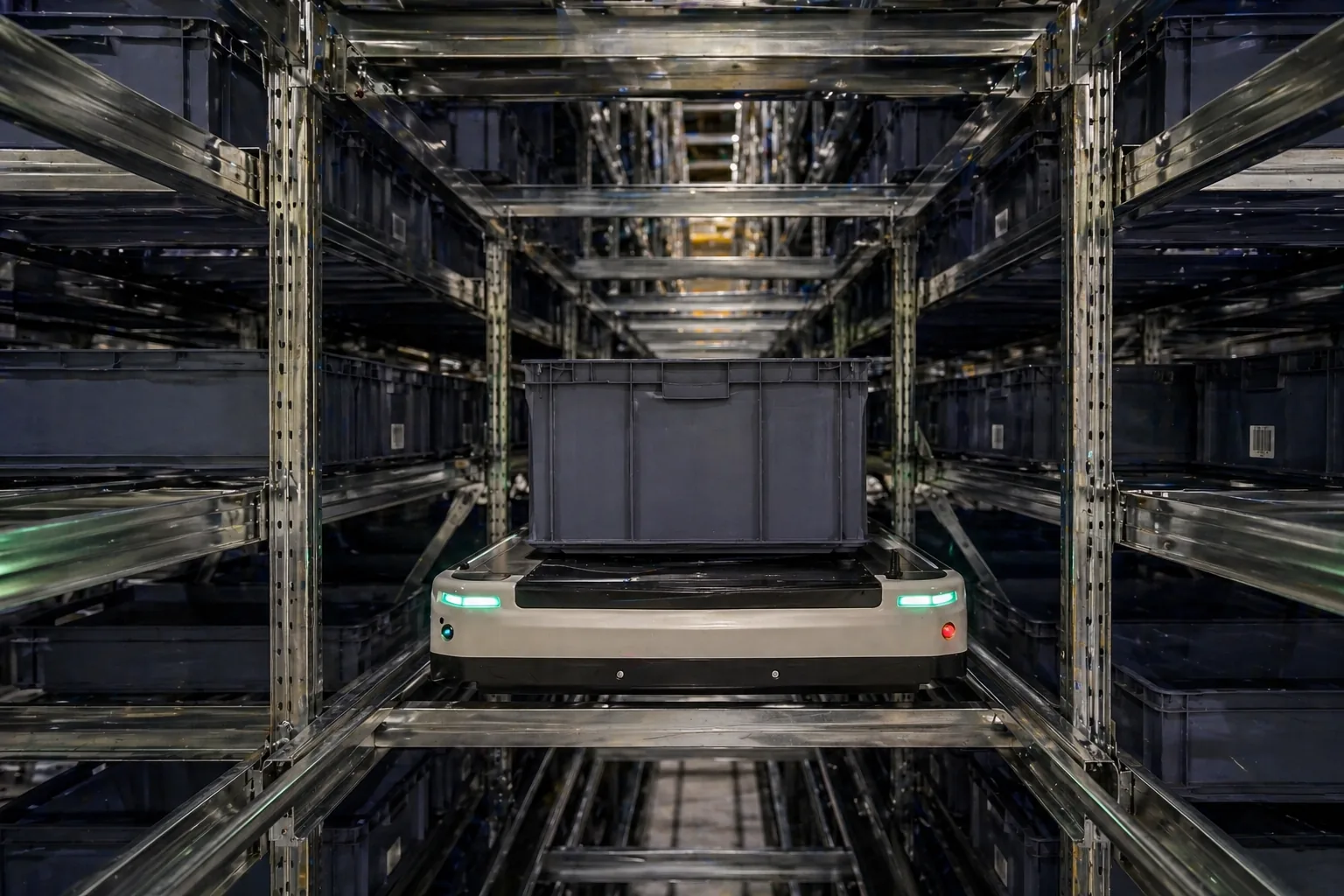

To optimize intralogistics within the storage area, a 4D Shuttle AMR system was implemented in collaboration with OEM partners—enabling autonomous movement of goods across X, Y, Z axes within racks, along with cross-lane transfer

Problem Statement:

Existing Challenges:

  • Limited accessibility across multiple rack levels.

Key Issues:

  • Inefficient Rack Utilization
    • Limited ability to access deep storage locations
  • Slow Put-away & Retrieval
    • Movement inside racks required multiple handling steps
  • Complex Intralogistics Flow
    • Limited ability to access deep storage locations
  • Accuracy & Traceability Issues
    • Risk of misplacement within dense storage systems
    • Difficulty in tracking product locations
Takeaways

Key Takeaways from This Case Study:

The implementation of the 4D Shuttle AMR system transformed intralogistics within the racking environment by introducing fully automated, multi-directional movement of finished goods.

By enabling high-density storage, faster operations, and precise control, the solution created a scalable, high-efficiency storage system that aligns with modern warehouse automation standards.

TakeawaysTakeaways
Our RoleOur RoleOur Role

Vrutti’s Role:

Choosing the Right Drive System for the AMR:

For this application, an omni-wheel drive system was selected to enable true multi-directional movement within dense racking environments.

System Impact:

  • Zero-turn-radius maneuvering inside tight rack lanes.
  • Zero-turn-radius maneuvering inside tight rack lanes.
  • Enables true 4D shuttle behavior (X, Y, Z via lift integration, and cross-lane transfer).
  • Workflow Synchronization:
    • Automated multi-directional movement inside racks.
    • Integration with production output flow.
    • Intelligent allocation of storage locations.
  • Testing & Optimization:
    • Positioning accuracy
    • Transfer timing between shuttle and lift systems
  • System Highlights:
    • True put-away and retrieval logic.
    • Efficient handling of deep-lane storage.
    • High-speed transfer across multiple rack levels.

"Enabling intelligent intralogistics within racking systems using 4D shuttle AMRs—achieving high-density storage, multi-axis movement, and optimized throughput."
